HBM PW27AC3/10KG single point load cell
Load Cell for Aseptic Production
The PW27A single-point load cells are very robust and easy to clean. They ensure precise weighing results in compliance with the highest hygiene requirements – ideal for the food and pharmaceutical industry.
PW27A: For Hygienic Weighing up to 20 kg
With load cells of the PW27A product series, companies producing and filling food products are well prepared to face all future challenges: Designed for low capacities ranging from 0 to 10kg and 0 to 20kg, the load cells comply with the strict EHEDG specifications and are therefore ideally suited for filling, packing, and weighing beverages and other food products.
Due to the special design of the stainless-steel measuring body in conjunction with the solid stainless-steel pipe housing, the PW27A load cells are hermetically sealed and extremely robust (IP68/IP69K degree of protection). This allows quick and thorough cleaning, even with high-pressure washers. Owing to their integrated and encapsulated overload protection—up to ten times their maximum capacity—the PW27A load cells’ functionality remains unchanged even if someone accidentally steps on them (e.g. when cleaning the machine).
A PW27AP version of the load cell—providing a connector for even faster integration—is also available.

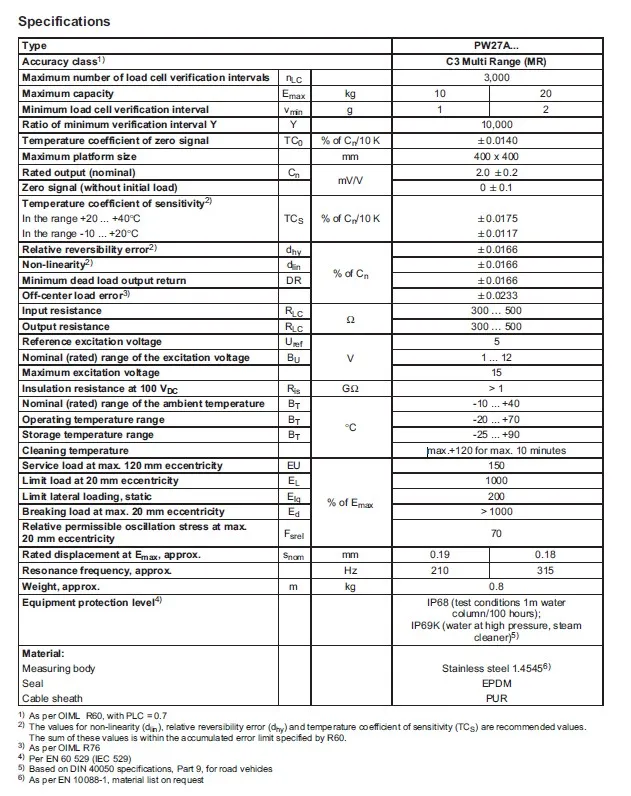

Accuracy class: C3 multi-range
Maximum capacities: 0–10 kg and 0–20 kg
Degree of protection: IP68/IP69K
Developed for Food
OIML-certified accuracy (C3MR)
Easy and residue-free cleaning: “Clean in Place“ (CiP)
IP68/IP69K
Maximum capacities ranging from 0 to 10 kg and 0 to 20 k
Meets all requirements for food processing and filling; maximum capacity ranges ideal for common package sizes
EHEDG-tested
Dirt-repellent design without gaps or edges
Completely made of stainless steel and therefore suitable for use in the food industry
Special surface quality
Hermetically sealed
Antibacterial cable
Easy to clean: Liquids roll right off; easy and residue-free cleaning
Robust
High chemical resistance through the use of robust materials
Suitable for humid and aggressive environments
Patented overload protection – spotless and aseptic at any time
Tried and tested, even in extremely harsh environment
Durable and rugged, even in harsh environments
